Dynamic Handset V1 - HS-DYN-V1-SPD-32
Dynamic Handset V1 - HS-DYN-V1-SPD-32

Alternative Views:




Free Shipping
Product Code: HS-DYN-V1-SPD-32


Wiring:


Length:


Call 800-525-4300 or email [email protected] for a quote.
Description

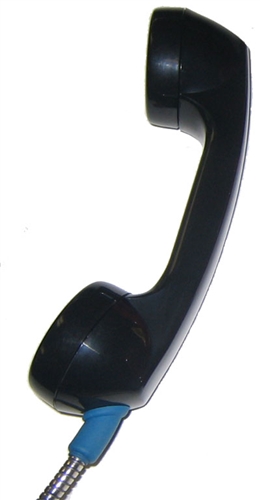

The Dynamic V1 Handset features a high-quality receiver and Dynamic microphone. The handset is constructed of durable ABS plastic combined with a high strength stainless cord and steel lanyard. The Dynamic V1 handset includes a low-impedence dynamic microphone. For applications which require a microphone with higher impedence, please see the Dynamic V2 handset. See technical specifications of each Dynamic handset for more info.

Each handset consist of the following elements:

- Handset type: SD-45150H20 Standard Receiver and DT-05 Dynamic Type 1 Transmitter.

- Handset handle and cap material: ABS

- Wiring: Four 24 gauge Teflon insulated wires (2 for receiver, 2 for transmitter) with single modular plug (Optional 4 spade conductors)

Features
  • Armored Cord Assembly.:
    - 304 Stainless Steel, Interlock style. Inside Diameter, 0.250", 6.350mm. Outside Diameter, 0.329", 8.357mm. Linear Pull Test Load, 1000 lbs., 454 kg

    - Includes steel lanyard which is anchored to handset handle. Steel lanyard has a pull test load of approx. 550 lbs, 250 kgs.
    - Other Components: lanyard block retainer; anti-rotation wedge; transmitter holder; blue rubber grommet to seal handset/cord connection

    SD-45150H20 Standard Receiver:
    - DC Resistance at 20 degrees C : 145 ± 15 ohm
    - Frequency Response Range: 300-3400 Hz
    - Sensitivity: 100 ± 2 dB at 60mv
    - Impedance: 150 ± 30 ohm at 1 KHz

    DT-05 Dynamic Type 1 Transmitter:
    - Type : Dynamic Type Transmitter
    - Response Range : -66 ± 3.5dBV(300-3300Hz)
    - Frequency Response : 1KHz: -66 ± 3.5 dbV
    - Impedance : 150 ± 30 ohm
    - Electrostatic Discharge : Breakdown Volt. 15KV.Min
    - Screw terminal
